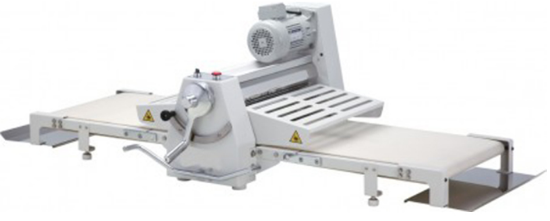

AXIS AX-TDS Dough Sheeter
Email to a Friend
Be the first to review this product
Availability: In stock
Deprecated functionality: iconv_set_encoding(): Use of iconv.internal_encoding is deprecated in /home2/abcoentc/public_html/lib/Zend/Locale/Format.php on line 302
Quick Overview
Heavy duty aluminum alloy head housing
Protective safety guards on both side of rollers, preventing hands to be caught by rollers
Easy control – forward and reverse by a single push button
Thickness – adjustable between 3-50mm
Roller speed is approximate 540mm per second
Synchronized 2-speed in feed prevents tearing of dough.
Automatic overload protective prevent motor from damage.
Both side conveyor tables are easily folded up in seconds to save space.
CONSTRUCTION: Heavy duty steel base, specially treated precision sheeting rollers, strong steel
Conveyor table and catch pans
MOTOR: Powerful, ball bearing, ventilated with enclosure
SWITCH: Limit switch, magnetic type with overload protection mounted.
Model Belt Size
(Inches)
Roller Size
(Inches)
Motor Dimensions
(L x W x H)
Ship Weight
(Lbs)
AX-TDS 16.9 x 66.9 3.4 x 17.7 ½ H.P 70.8 x 31.8 x 23.6 340
